Large LCD Display Handheld Flow Meter Bidirectional With Clamp On Transducer

  • 1
  • 2

Brand Name : Iflow

Model Number : 2000H

Certification : ISO9001, CE

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 5000 pieces per month

Delivery Time : 1-2 weeks

Packaging Details : carton / wooden case

Type : Handheld Ultrasonic flow meter

Display : LCD

Transducer : clamp on / inserter / pipe line

Accuracy : +/- 1%

Communication : 4-20 MA / OCT Pulse / Relay

Size : DN50-700

Temperature : 90 C / 160 C

Application : water, waste water, seawater

Contact Now

Handheld ultrasonic flow meter with clamp-on transducer for closed pipe flow measurement

Product Description

The portable ultrasonic flow meter features the advanced Trans-Phase measuring technology, providing accurate and reliable flow velocity assessments in closed piping systems. It utilizes a non-invasive clamp-on transducer which is placed on the outside of a pipe. Within seconds, the backlit LCD provides stable flowrate readings in cubic meter per hour or meters per second. This product operates on metal or plastic pipes containing liquids with more than 100 ppm of 100 micron or larger suspended solids or entrained gases.

Features

  • High accuracy measurement: accuracy: +/-1%, linearity 0.5%, repeatability: 0.2%
  • Small size, light weight
  • Non intrusive measuring, clamp-on transducer, no pressure drop, no pipe disturbance
  • Wide measuring range, DN15 to DN6000mm
  • Large LCD display of: instantaneous flow, accumulated flow (positive, negative and net), velocity, work status, etc.
  • Built in data logger 24K, store over 2000 lines measuring data

Data sheet:

Content Parameters and performance
Main instrument Work Principle Transit-time ultrasonic flow meter
Accuracy 2% FS, Repeatability: 0.2%
Display backlit LCD, 4 line, 16 digit
Size 200x93x33mm, 390g
Operation Compatible 16 key touch key board and simulation keyboard software
Interface Insulated RS232, update software, MODBUS
Output single way OCT pulse
Signal cable twisted pair cable, RS232 communication selection, (5m x 2)
Pipe condition Material steel, stainless steel, cast iron, copper, cement pipe, PVC, aluminum, glass fiber
Diameter DN15 - DN6000mm
Straight L 10D upstream, 5D downstream, and min 30D away from pump
Liquid media Media type water, ultra pure liquid, solvents, and other fluid liquid
Media temp. Transducer: -30 to 90, (customized: -40 to 160)
Turbidity 10000 ppm or below, less bubble
Flow rate 0 - 10 m/s, bi-direction
Flow direction bi-direction flow
Environment Temperature Main unit: -20 - 60
Transducer: -40 - 160
Humidity 85% RH
Power supply AC 110 - 240V

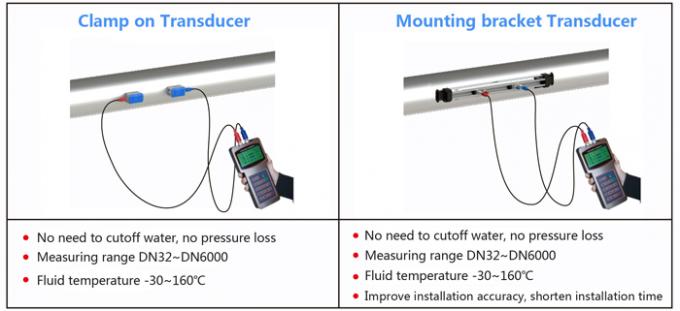

Metering Diagram

Flow measurement Heat measurement

Large LCD Display Handheld Flow Meter Bidirectional With Clamp On Transducer

Reference chart

Type Model Pipe dia (mm) Temperature Dimension (mm)
Clamp on TS-2 DN15-100 -30-90℃ 45x25x32
TM-1 DN50-700 -30-90℃ 64x39x44
TL-1 DN300-6000 -30-90℃ 97x54x53
Clamp on (high temperature) TS-2-HT DN15-100 -30-90℃ 45x25x32
TM-1-HT DN50-700 -30-90℃ 64x39x44
TL-1-HT DN300-6000 -30-90℃ 97x54x53
Insertion type TC-1 DN80-6000 -30-90℃ 190x80x55
TC-2(lengthen) DN80-6000 -30-90℃ 335x80x55
Pipe type G3 (π type) DN15-25 -30-160℃
G2 DN32/DN40 -30-160℃
G3 DN50-6000 -30-160℃

Optional temperature transducer

Specification Model Dia Temp. Water cut Accuracy
Clamp-on temp. transducer Pt100 CT-1 >DN50 -40-160℃ No 100+ 0.8℃
Insertion temp. Transducer Pt100 TCT-1 Yes
Insertion temp. Pt100 with pressure PCT-1 No
Insertion temp.Pt100 for small pipe D SCT-1 <DN50 Yes

Industries

  • Chemicals
  • Petrochemicals
  • Oil & Gas
  • Heating, Ventilation & Air Conditioning (HVAC)
  • Power Plants
  • Water treatment

Applications

  • Metering of cooling water
  • Demineralisedwater
  • Control of batching and blending operations
  • Mass flow measurement
  • Allocation measurement
  • District heating
  • Irrigation
  • Energy measurement

Model Selection

I Model
YF Electromagnetic flowmeter
TF Turbine
VF Votex
LX Vane wheel
T Ultrasonic
E/F display mode E: compact/local display, F: remote display
Pipe Dia Type (mm)
xxxx

10, 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300,

400, 500, 600, 800, 1000
Code Accuracy
1 + 0.5% FS
2 + 1.0% FS
3 + 0.2% FS
Code Type
N Converter: 12 / 24 VDC, pulse output
A Transmitter: 24VDC, 4-20mA outpt
B Intelligent, Lion battery, no local display
G Smart, local display, 4-20mA output
C1 Smart, local display, RS485
C2 Smart, local display, HART
Code Type
S Carbon steel housing
L Stainless steel housing
G High pressure housing
HL 316L electrode
HTi Titanium electrode
HTa Tantlum electrode
HC Hastelloy-C electrode
L1 Liquid media
L2 Gas media
P Pressure compensation
T Temperature compensation
PT Pressure&Temp. Compensation
F PTFE liner
X Rubber liner

Sample: IYF-E-0100-1-C1-S-HL-L1-F,

Magmeter, local display, Dia: 100mm, + 0.5%FS, carbon steel housing, smart, 4-20mA outpt,

RS485, 316L electrode, liquid media meter, PTFE liner

Competitive Advantage:

  • Compliance to international standards: ISO9001-2008 / GB/T19001 / MC00000-044/507
  • CE approval
  • Strict process control
  • Advanced calibration equipment
  • Engineer team
